No Corners / Sharp Edges Quail Cage 6 Tier 2 Doors High Automation Long Lifespan

No Corners / Sharp Edges Quail Cage 6 Tier 2 Doors High Automation Long Lifespan

  • High Light

    quail bird cage

    ,

    automatic poultry cage

  • Keyword
    Quail Cage
  • Cage Frame
    U-shape Steel Cage Frame
  • Feature
    Quail Cage
  • Material
    Hot Galvanized Q235 Steel Wire
  • Surface Treatment
    Hot Galvanized
  • Warranty
    15-20 Years
  • Tier
    5 Tiers And 6 Tier
  • Type
    H Type And A Type
  • System
    Automatic
  • Size
    1300*450*250mm
  • Model
    HXQC5
  • Voltage
    380V And 220v
  • Place of Origin
    China
  • Brand Name
    HUAXING
  • Certification
    ISO9001
  • Model Number
    HXQCA6
  • Minimum Order Quantity
    50set
  • Price
    70USD-115USD
  • Packaging Details
    BULK
  • Delivery Time
    15-30 work days
  • Payment Terms
    L/C D/A D/P T/T Western Union
  • Supply Ability
    900000set/month

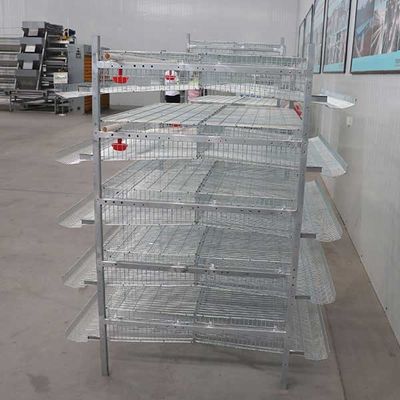

No Corners / Sharp Edges Quail Cage 6 Tier 2 Doors High Automation Long Lifespan

AUTOMATIC Hot dipped galvanized 6 TIER 2 DOORS QUAIL CAGE

Features

1. Automated controlled system

2. Easy maintenance and operation

3. anti-corrosive,long durability



Material

cold galvanized steel wire



Surface Treatment

cold galvanize ( can be hot galvanize, electro spary, etc.)



Scalability

If there are special specifications, also can be customized to sample.



Protection performance:Prevent rust, Prevent infection

Surface treatment process: Hot Galvanized & cold Galvanized

Voltage:380V and 220v

Accessories:PVC pipe, nipple drinker, "V" shape water troughs with joints, pipe joint

Protection performance: waterproof, fireproof, high temperature resistant, etc.



Quail Cage description:



The cages for breeding quails are called quail cages, which are mainly used for hatching quails, which can avoid the injury of small quail legs and twisting and injury. It is a more convenient breeding tool now used, and it is also the product of choice for major breeding industries .



Quail Cage technical parameters:



Specifications of quail cage
6 tier H Type cage 6 tiers- 24 cell
Capacity 576 quails
Quail per cell 24quail
Size/set 1300mm× 1270m ×1500mm
Size/cell 650m× 450m ×250m

5 tier H Type cage 5 tiers- 20 cell
Capacity 480 quails
Quail per cell 24quail
Size/set 1300mm× 1270m ×1450mm
Size/cell 650m× 450m ×250m

6 tier A Type cage 6 tiers- 12 cell
Capacity 288 quails
Quail per cell 24quail
Size/set 1300mm× 900m ×1500mm
Size/cell 650m× 450m ×250m

6 tier A Type cage 6 tiers- 24 cell
Capacity 576 quails
Quail per cell 24quail
Size/set 1300mm× 2000m ×1500mm
Size/cell 650m× 450m ×250m

5 tier A Type cage 5 tiers- 10 cell
Capacity 240 quails
Quail per cell 24quail
Size/set 1300mm× 900m ×1450mm
Size/cell 650m× 450m ×250m

5 tier A Type cage 5 tiers- 20 cell
Capacity 480 quails
Quail per cell 24quail
Size/set 1300mm× 2000m ×1450mm
Size/cell 650m× 450m ×250m
Notice:If there are special cage specifications, also can be customized
Material: Q235 Cold drawn wire welding
Surface: Electric galvanized, hot dipped galvanized, PVC coated
Wire diameter: 1.8mm-2.2mm-3.5mm

Specialty: Easy to assemble. Feeding and easy management, save the space, effectively prevent infectious diseases,

and increase the survival rate.

Packing: 20' container can packing 200 sets. 40' container can packing 400sets.
Accessories: Feeder ,Yellow drinkers 9.5mm diameter soft water line .Soft water pipes, Manure clean board. Plastic feeder, Plastic manure board. Cage nail and clamp.




H type 6tiers quail cage 6tiers 24 cell
Capacity 576 Quails
Quail per Cell 24 Quails
Set / size 1300mm*1270mm*1500mm
Size / Cell 650mm*450mm*250mm
Raw materials Hot Galvanizied Q235 still wire
Color silver white
Wire diameter 1.8mm-2.2mm-3.5mm
Use description Quail Farm
Precise extremely accurate part assembly
Reliable Durability more than 20year
Fast It improves installation times for the fitters
Economical Save space
Safe no corners or sharp edges



Different types with different sizes of the houses:



6 tier H type quail cage :

Normally, the capacity of the quails cage is 576 quail . the spacing between each column of cages is about 1 meter. The cages are installed about 127mm wide and the length of each cage is 1300m m. You can plan the size of the house based on this data and the number of quails you want to feed.

We also can design the house size for you .



6 tier A type quail cage:

Normally, the capacity of the quails cage is 576quail .. the spacing between each column of cages is about oen meter. The cages are installed about 2000mm wide and the length of each cage is 1300m m. You can plan the size of the house based on this data and the number of quails you want to feed.

We also can design the house size for you .



No Corners / Sharp Edges Quail Cage 6 Tier 2 Doors High Automation Long Lifespan 0



Product features:



1)Hot-dip galvanized coating extends the service life of the cage, even in the most extreme climatic conditions, it also has the functions of anti-rust, anti-corrosion and anti-fading

2)The Huaxing quail cage all models ensure maximum reliability and ease of operation, we guarantee the very highest standards of welfare to ensure optimum production.

3)The birds have excellent air ventilation and optimum light conditions.

4)The cage doors, with both partial and full opening alternatives, have no corners or sharp edges.

5)The floating floor is tilted 7° to allow the eggs to roll down more easily.

6)The partitions prevent the eggs remaining on vertical wires while the protection baffle protects the eggs and is ergonomic for the chickens; it can be perforated for shortening the birds claws on request.

7)Quail eggs automatic collection system the eggs roll down a floating floor in wire-mesh with a slope of 6.5 – 7 degrees to the egg channels.

8)This rod conveyor is lifted and accurately positioned on the collection tier. An optional variable-frequency drive enables you to change the speed of the belts.

9)Feed conveying and dispensing system uses PE pipe and auger imported from South Africa ,the feed conveying speed is fast. it is easy to maintain

10)Modern control system with professional design to save working labor, convenient to control and operation. We can offer controlling system according to the customers’demands.





E. Product advantages:



[1] five Tiers H type → save 70% land.

[2] Hot-dip galvanizing → corrosion resistance and long life.

[3] Q235 material → flexible.

[4] Centralized management → saving energy and resources and improving labor productivity.

[5] Unique cage door design → effectively prevent wasting feed.

[6] Conveyor belt dung system → reducing environmental pollution.

[7] Precise extremely precise parts assembly.

[8] More than 20 years of reliable durability.

[9] Fast it shortens the fitter's installation time.

[10] Economical space saving.

[11] Safe corners or sharp edges.



F. Product application;



farms,automatic design commercial quail cage,garment shops,manufacturing plant,advertising company and so on.





H. FAQ



Q: Can i get more fitting and accessories for the cages?



A: Yes, no problem, when we arrange the production, the quantities for all fittings and accessories are more than your requirements. We guarantee we will provide you extra accessories for using and replacing



Q: How to send the a inquiry of poultry cage ?



1. Do you need to what kind of poultry cage? Egg (layer)chicken cage, Broiler (meat chicken)cage, baby chicken cage, duck cage, quail cage, pigeon cage, rabbit cage.

2. Do you need the number of rearing poultry? Or do you the size of the poultry house (Plan raise house)?



Q: Are you manufacturer or trade company?



The Factory starts from 1996, with the registered capital of RMB6.8 million and fixed assets of RMB38 million, our company is located 915km away from 107 State Road in Xiping County, Henan Province.



Q: What is the advantage of your products and services?



1. If you are a new poultry farmer or you just contact with poultry cage industry. You will meet a lot of problems: How to build the poultry house? poultry house construction need to be aware of problems?

How many feed poultry to eat every day? How many days of poultry in a cage? Growth of poultry diseases treatment? How to buy poultry cage is more economic and durable? Etc. --This is a small part of our service for you.



2. We have professional poultry designer, poultry cage designer and poultry raising technical personnel , they have a wealth of experience, no matter you have any questions, we can solve for you.

3. we have more than 26 years of production experience ,products have passed ISO 9001 Certification, our quality more secure ,Our high quality product's service life is more than 20 years .



Q : Can I customize the product

A: yes. We need below Process



Q: How to install the cage?

1, we provide DVD to teach you how to install the cage.

2, Send our engineer to your farm



  • What is the requirements, when you purchase the quail cage.
  • the quail cage should be have enough space for quail .

120cm2 per quail for our cage

2) the quail cage must be including the feeder and drinker and clean manure Accessories

3) The material must be good, otherwise the elasticity is not good, the quail eggs are easily broken



J. Cautions when setting up a quail house cage:

1) The quail cage of appropriate material should be selected according to the local terrain and climate characteristics, and the shape and style of the quail cage should conform to the construction characteristics of the quail house.

2) When building, the light should be dim, not too dark or too bright, so pay attention to the position and size of the window, and then pay attention to ventilation. In order to prevent other animals from entering, airtight design is also required.

3) Lighting facilities should be installed inside the quail cage to fill the quail, which can increase the laying rate of female quails.







K. Our service:



We can provide Quail house design and Quail cage layout services.



We have customers from all over the world You can tell me which country you are from, your farm plan, and the egg production you want. We will provide one-on-one service and design for you.



1) Types of houses and location requirements:

It can be enclosed quails houses or open quails houses but the house should be well ventilated.

2.) Size of the quails house

Because we have three types of quail cages, H type , A type with one side ,A type with two sides.
